JA310 is a low-power, high-performance AI vision SoC launched by JLQ Technology for AIoT market. JA310 has powerful image, video and audio processing capabilities, which can be widely used in all major AI inference usage scenarios, and support more subdivided application scenarios.

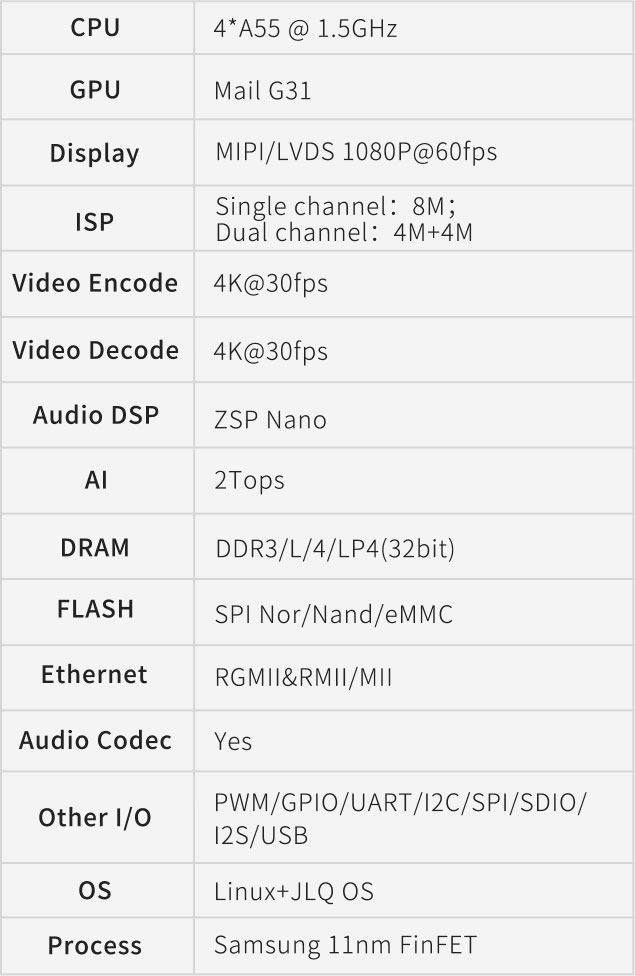

CPU |
4*A55 @ 1.5GHz |
GPU |
Mail G31 |
Display |
MIPI/LVDS 1080P@60fps |
ISP |
Single channel: 8M;         Dual channel: 4M+4M |
Video Encode |
4K@30fps |
Video Decode |
4K@30fps |
Audio DSP |
ZSP Nano |
Al |
2Tops |
DRAM |
DDR3/L/4/LP4(32bit) |
FLASH |
SPI Nor/Nand/eMMC |
Ethernet |
RGMII&RMII/MII |
Audio Codec |
Yes |
Other I/O |
PWM/GPIO/UART/í2C/SPI/SDIO/I2S/USB |
OS |
Linux+JLQ OS |
Process |
Samsung 11nm FinFET |
